Plot a tipping-point analysis

Source: R/solomon_mi.R
plot_tipping_point.Rd

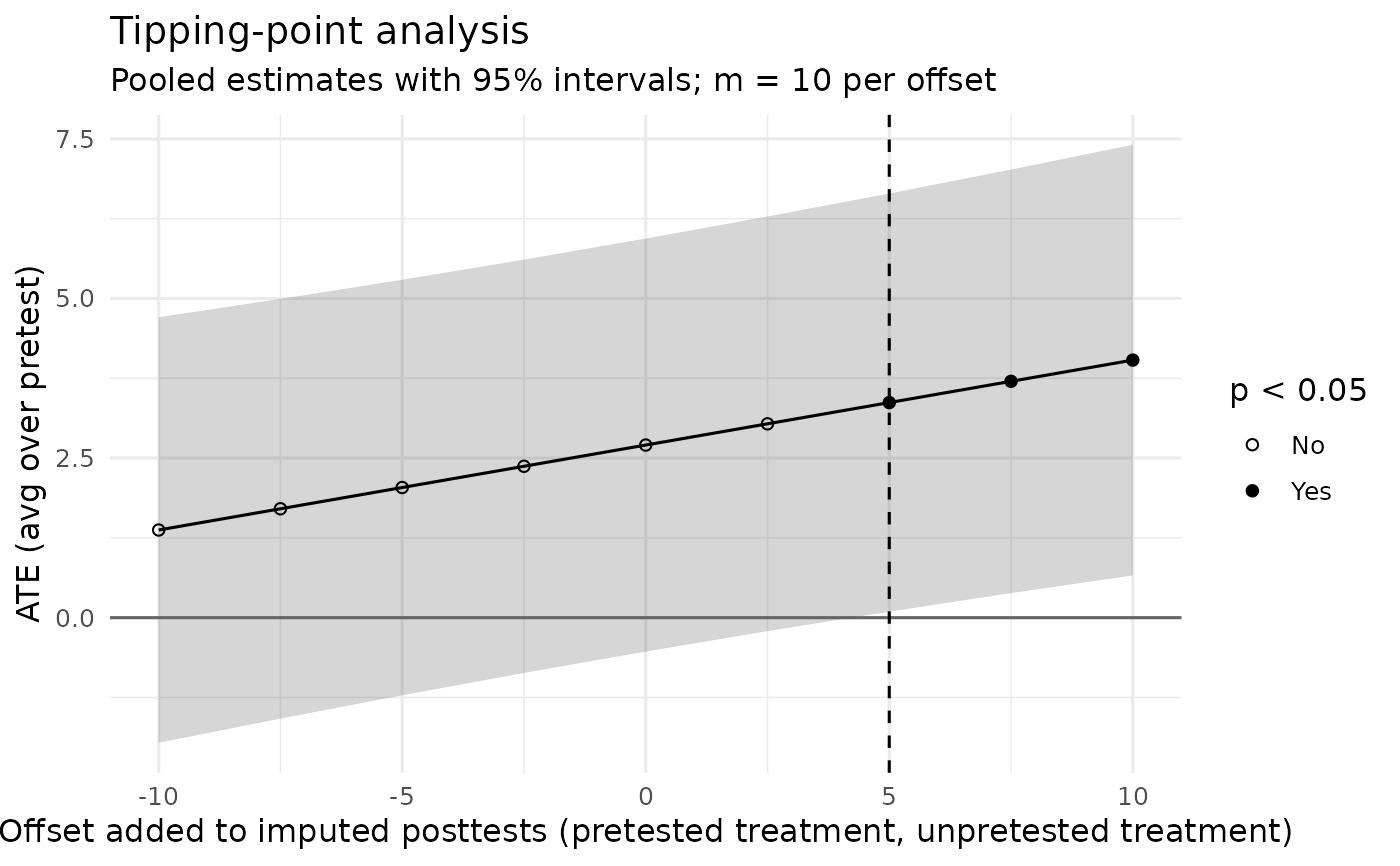

[Experimental] Plots the pooled estimate of a Solomon contrast, with its confidence interval, against the offset added to the imputed posttests, from tipping_point_solomon(). Dashed lines mark the offsets at which the conclusion changes.

Usage

plot_tipping_point(tipping)

Arguments

tipping

A result from tipping_point_solomon().

Value

A ggplot object.

See also

tipping_point_solomon()

Examples

d <- solomon_example
set.seed(82)
d$y_post[sample(nrow(d), 20)] <- NA
tp <- tipping_point_solomon(y_post, treat, pretested, y_pre, groups = "treatment",
                            deltas = seq(-10, 10, by = 2.5), m = 10, seed = 1, data = d)
plot_tipping_point(tp)
